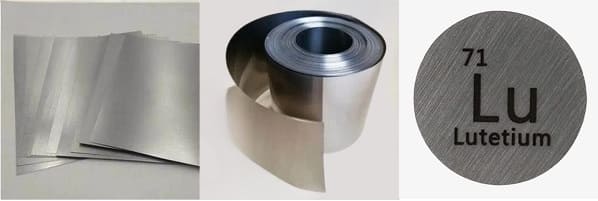

Lutetium (Lu) Sheet/Foil/Disc

HTST1205

New product

Lutetium (Lu) is a silvery metal with a density of 9.85 g/cm3. Heeger Materials (HM) is a trusted manufacturer of Lutetium metals. We offer the highest quality Lutetium sheet, Lutetium foil, and Lutetium disc in a couple of standard thicknesses and dimensions at a competitive price. The purity and size can be customized upon request.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

ShapeSheet/Foil/Disc
MaterialsLu
Purity99.9% - 99.99%
CAS7439-94-3

More info

Lutetium (Lu) is a chemical element with the chemical symbol Lu and atomic number 71. It is the densest, highest melting point, and lowest reactivity of the lanthanides. It can resist corrosion in dry air but is easily oxidized in humid air and soluble in acid. Lutetium (Lu) Sheet/Foil/Disc is mostly produced from cast ingots, which can be used in scientific research or industrial production.

Lutetium (Lu) Sheet/Foil/Disc

  • Atomic Mass: 174.967 g/mol
  • Melting Point: 1656.0 °C (1929.15 K, 3012.8 °F)
  • Crystal Structure: Hexagonal
  • Density: 9.85g/cm3

Lutetium (Lu) Sheet/Foil/Disc Specifications

Product

Lutetium sheet, Lutetium foil, Lutetium disc

Thickness

1 mm - 10mm, Tolerance:±0.01mm

Width

5mm - 100mm, Tolerance:±1mm

Length

>10mm, Tolerance:±1mm

Purity

TREM ≥ 99.95%, TREM ≥ 99.9%

Lutetium (Lu) Sheet/Foil/Disc Applications

  • Used in coating and thin film Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) processes.
  • Used as an evaporation source in microelectronics, optics, magnetics, MEMS, and hard-resistant coatings.

Lutetium (Lu) Sheet/Foil/Disc Packing

Lutetium (Lu) Sheet/Foil/Disc products are all vacuum-packed independently. Small-sized products are packaged in cartons, and large-sized products are packaged in wooden boxes.
