Molybdenum Copper Alloy, MoCu Alloy

HTMO1098

New product

Molybdenum-copper (MoCu) alloy is a quasi-alloy that combines the benefits of molybdenum and copper. It has excellent properties such as high strength, high density, resistance to high temperatures and arc erosion, good conductivity, and processability. Heeger Materials offers top-quality Mo-Cu Alloy at competitive prices, providing customization options to meet specific needs.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

MaterialsMo90Cu10, Mo85Cu15, Mo80Cu20, Mo70Cu30, Mo60Cu40, Mo50Cu50, Mo40Cu60, or customized

More info

Molybdenum-copper (MoCu) alloy features an adjustable thermal expansion coefficient and thermal conductivity. The molybdenum to copper ratio is customizable, offering lower density but a higher thermal expansion coefficient than tungsten-copper (WCu) alloy. Its superior rollability makes it suitable for thin strip production and stamping, enabling cost-effective, high-volume production of heat-sinkable parts. Consequently, MoCu alloy is more suited for aerospace and other industries.

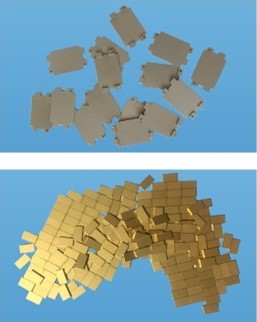

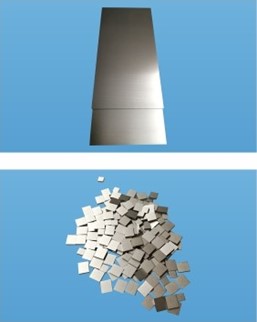

MoCu Alloy SheetsMoCu Alloy with coating

Molybdenum Copper Alloy Specifications

Material

Mo Content

Cu Content

Density

Thermal Conductivity

25

CTE

25

Wt%

Wt%

g/cm3

W/M∙K

(10-6/K)

Mo90Cu10

90±1

Balance

10

150-160

5.6

Mo85Cu15

85±1

Balance

10

160-180

6.8

Mo80Cu20

80±1

Balance

9.9

170-190

7.7

Mo70Cu30

70±1

Balance

9.8

180-200

9.1

Mo60Cu40

60±1

Balance

9.66

210-250

10.3

Mo50Cu50

50±0.2

Balance

9.54

230-270

11.5

Mo40Cu60

40±0.2

Balance

9.42

280-290

11.8

*The ratio of Molybdenum to Copper can be tailored according to specific requirements.

Molybdenum Copper Alloy Features

  • High conductivity
  • Adjustable low coefficient of thermal expansion
  • Non-magnetic
  • Low gas content
  • Good vacuum properties
  • Good machinability and special high-temperature properties

Molybdenum Copper Alloy Applications

  • Microwave carriers
  • Ceramic substrate carriers
  • Laser diode mounts
  • Optical packages
  • Power packages
  • Butterfly packages
  • Crystal carriers for solid-state lasers

Molybdenum Copper Alloy Packing

Molybdenum Copper Alloy is tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage caused during storage or transportation.
