Spherical chromium powder powder has...
New product

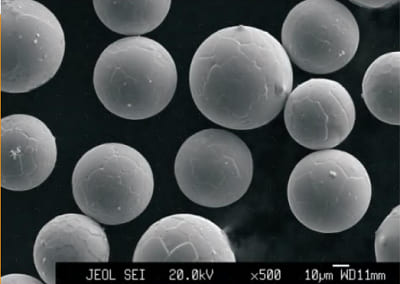

Spherical chromium powder powder has the characteristics of high sphericity, good fluidity, high purity, large loose density, full density inside particles, no hollow powder and so on.
This product is no longer in stock
Availability date:
Inquiry
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Spherical chromium powder powder has the characteristics of high sphericity, good fluidity, high purity, large loose density, full density inside particles, no hollow powder and so on. Spherical chromium powder powder can be widely used in cemented carbide, diamond tools, welding materials, buttons and other fields and it is suitable for laser / electron beam material manufacturing, thermal isostatic pressing, laser cladding, vacuum coating, thermal spraying, cold spraying and so on.
Product name:spherical chromium powder
Product specifications (Particle Size): 5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 75-150μm. (Various granularities can be customized according to customer requirements)
Powder characteristics: high purity (≥99.9%), low oxygen (≤300ppm), high sphericity (≥98%), smooth surface, no satellite spheres, uniform particle size distribution, and excellent flow properties (≤15.0s/50g) And high bulk density (≥4.5g/cm3) and tap density (≥5.5g/cm3).
Applicable processes: laser/electron beam additive manufacturing (SLM/EBM, 3D printing), laser direct deposition (DLD), powder hot isostatic pressing (HIP), metal injection molding (MIM), powder metallurgy (PM), laser cladding ( LC) and other processes.
Powder application: RF plasma spheroidized chromium powder has the characteristics of high sphericity, good fluidity, high purity, large loose packing density, full internal density of the particles, and no hollow powder. It is widely used in cemented carbide, diamond tools, and welding materials. , Palladium, vacuum coating, thermal spraying, ceramics, etc.
Product packaging: vacuum packaging, 1kg/bag, 2kg/bag; iron drum lined with plastic bag 25 kg/drum; special packaging is available according to user requirements.
Chemical Composition:
Chemical Composition - by ICP-AES | ||||||||
Element | Cr | Fe | Si | Al | Mo | Ti | W | Ni |
Value (%) | ≥99.9 | <0.02 | <0.01 | <0.006 | <0.005 | <0.001 | <0.001 | <0.001 |
Gas Impurities | ||||||||
Element | C | S | O | N | ||||
Value (%) | </= 0.005 | </= 0.001 | </= 0.030 | </= 0.004 |
Physical Properties
Density (g/cm3) | Hall Flow Rate (s/50g) | |
Apparent Density | Tap Density | Value |
>4.2 | >5.5 | </= 15.0 |
Particle Size Description
5-25μm(D10=5~10μm、D50=15~20μm、D90=20~25μm)
15-45μm(D10=15~20μm、D50=25~30μm、D90=35~40μm)
15-53μm(D10=15~20μm、D50=25~35μm、D90=45~50μm)
45-75μm(D10=45~55μm、D50=55~65μm、D90=70~75μm)
45-105μm(D10=50~60μm、D50=75~85μm、D90=95~105μm)
75-150μm(D10=80~90μm、D50=110~125μm、D90=135~150μm)
