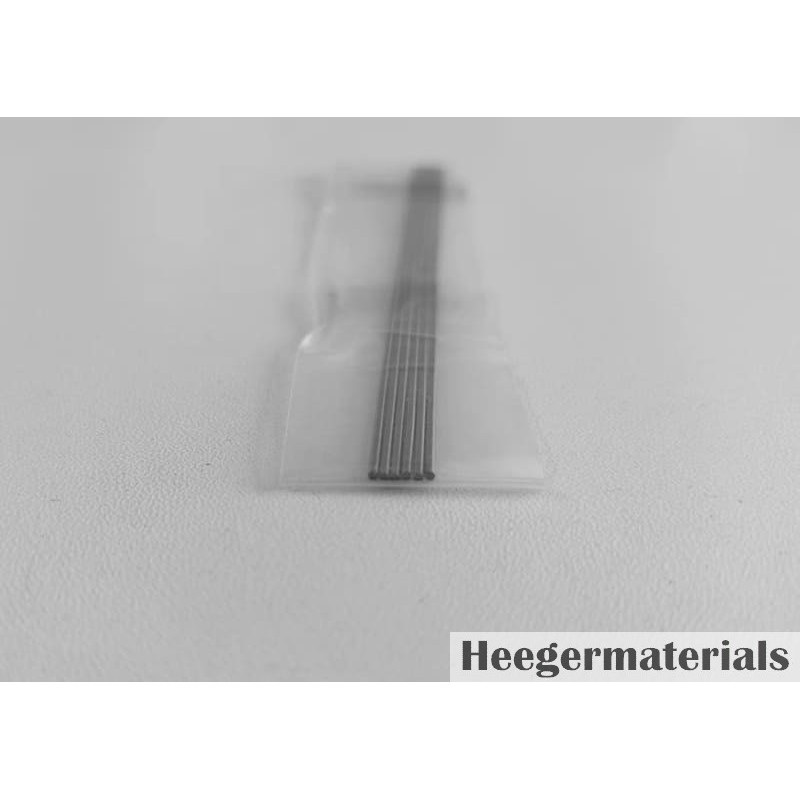

Tantalum (Ta) & Tantalum Alloy Rod

HTTa0007

New product

Tantalum Rod is made according to ASTM B365. Pure tantalum rods are available in 99.95% and 99.99% purity. We can also provide tantalum alloy rods, the common ones are Ta10W and Ta2.5W Rods.

More details

Inquiry
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Diameter1 inch ~ 8 inch
Purity99.95% ,99.99%
StandardASTM B365; ASTM F560
MaterialTa, Ta10W, Ta2.5W, Ta40Nb,UNS R05200, R05400, R05255, R05252, R05240
ConditionAnnealed, Unannealed

More info

HM provides high-quality Tantalum and Tantalum Alloy Rod at a competitive price, which can be used in Scientific research or industrial production. Tantalum is a chemical element with the symbol Ta and atomic number 73.  Tantalum is a rare, hard, blue-gray, lustrous transition metal that is highly corrosion-resistant.

  • Appearance: gray-blue
  • Melting point: 3290 K (3017 °C, 5463 °F)
  • Boiling point: 5731 K (5458 °C, 9856 °F)
  • Density (near r.t.): 16.69 g/cm3
  • When liquid (at m.p.): 15 g/cm3
  • The heat of fusion: 36.57 kJ/mol
  • The heat of vaporization: 753 kJ/mol
  • Molar heat capacity: 25.36 J/(mol·K)

Tantalum Rod Specifications

Product

Tantalum rod / Tantalum bar

Size

Diameter: 0.125 inch ~ 2.5 inch*

Length:< 10 feet

Material

Tantalum or alloy including: UNS R05200, UNS R05400, R05252 Ta-2.5W, R05255 Ta-10W, Ro5240 Ta-40Nb, Other customized alloy

Standard

ASTM B365;  ASTM F560 (Medical Grade)

purity

>=99.95% or 99.99%

 *If the diameter is <0.125”, please check our tantalum wire.

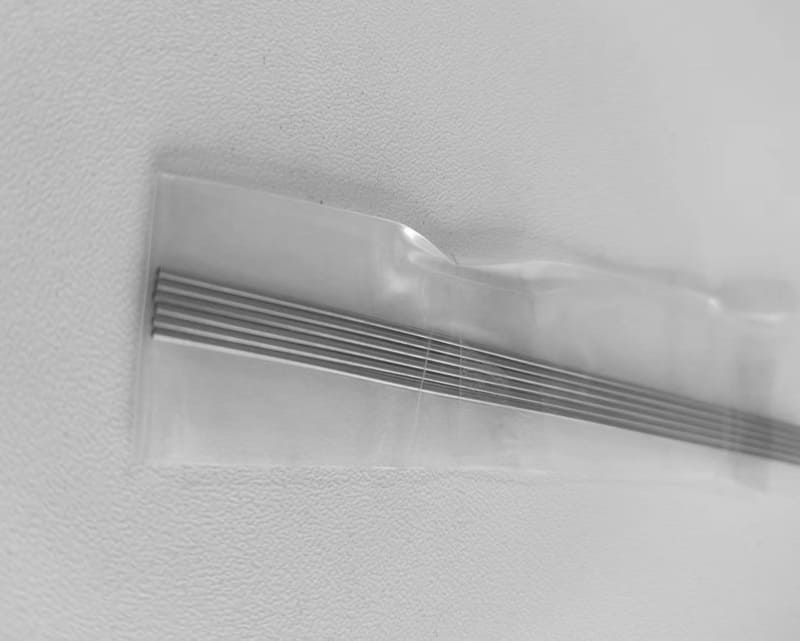

tantalum-ta-rod-bar

Standard Dimensions of the Tantalum Rod

Catalog NumberChemical FormulaDiameterPurityTemper
TA007910Ta1.0 mm99.95% As Rolled
TA007915Ta1.5 mm99.95%Annealed
TA007917Ta1.7 mm99.95%Annealed
TA007920Ta2.0 mm99.95%Annealed
TA007926Ta3.0 mm99.95%Annealed
TA007930Ta5.0 mm99.95%Annealed
TA007935Ta6.35 mm99.95%Annealed
TA007940Ta10.0 mm99.95%Annealed
TA007942Ta12.7 mm99.95%Annealed
TA007945Ta16 mm99.95%As drawn
TA007948Ta18 mm99.95%Annealed
TA007950Ta20.0 mm99.95%Annealed
TA007955Ta25 mm99.95%As Rolled
TA007960Ta30.0 mm99.95%Unannealed
TA007961Ta30 mm99.95% As Rolled
TA007970Ta40.0 mm99.95%Unannealed
TA007972Ta50 mm99.95%Annealed
TA007975Ta75 mm99.95%Annealed
TA007995Ta100 mm99.95% As Rolled

Tantalum Rod Chemical Composition

ElmentCONHFeMoNbNiSiTiW
R05200(%,Max)0.010.0150.010.00150.010.020.10.010.0050.010.05
R05400 (%,Max)0.010.030.010.00150.010.020.10.010.0050.010.05
R05255 (Ta10W) (%,Max)0.010.0150.010.00150.010.020.10.010.0050.019.0–11.0
R05452 (Ta2.5W) (%,Max)0.010.0150.010.00150.010.020.50.010.0050.012.0–3.5
R05240 (Ta-40Nb) (%,Max)0.010.020.010.00150.010.0235.0–42.00.010.0050.010.05

Tantalum and Tantalum Alloy

  • R05200, unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both
  • R05400, unalloyed tantalum, powder-metallurgy consolidation.
  • R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.
  • R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.
  • R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt.

Tantalum Rod Ordering Information

Orders for material under this specification shall include the following information:

  • Quantity (weight or number of pieces)
  • UNS grade (See above Tantalum and Tantalum Alloy UNS Grade)
  • Dimensions (Diameter and length)
  • Additions to the specification and supplementary requirements, if required

Tantalum Rod Packing

Our tantalum Rod and Tantalum Bar will be packed in a wooden case or carton supported with soft materials to ensure that the products thus packed will not shift inside the cases.
